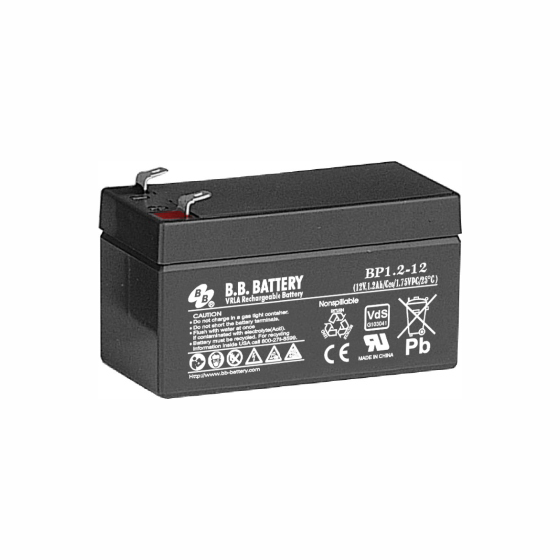

BP1.2-12
The B.B.Battery BP1.2-12 series VRLA battery is specifically designed for long-term stable power supply needs, offering 12V voltage and 1.2Ah capacity configuration, suitable for critical applications such as UPS systems, security alarm systems, and medical equipment. Featuring impact-resistant ABS casing and fully sealed structure, it supports vertical/horizontal dual-mode installation with a monthly self-discharge rate below 3%, eliminating daily maintenance hassles. Built-in explosion-proof pressure relief valve ensures safety, while its compact dimensions (97x45x56mm) and lightweight 0.59kg design make it ideal for space-constrained IoT terminals and micro emergency systems. Its 8-10 year ultra-long lifespan meets Eurobat high-standard certification.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
This 12V sealed lead-acid battery redefines small backup power standards through technological innovation. Its core value lies in the perfect integration of industrial-grade protection and miniaturized design: the impact-resistant ABS casing withstands harsh environments, while the special paste coating process on positive and negative plates ensures stable 1.0-230Ah wide capacity output even under frequent charge/discharge scenarios. The unique six-hole electrolyte filling structure combined with non-combustible material pressure relief valves provides dual safety protection, eliminating electrolyte leakage risks.Test data shows it delivers precise 1.2Ah capacity under 20-hour rate discharge, maintaining 1.02Ah effective capacity at 5-hour rate - particularly suitable for devices requiring continuous micro-current supply like access controllers and smart medical monitors. With ultra-lightweight 0.59kg design and compact 3.82-inch length, it easily integrates into cabinet interlayers or equipment interiors, providing reliable power for rural villa solar systems, mobile POS terminals, and even EV auxiliary power systems.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP1.2-12
- Voltage12 V
- Nominal Capacity (Ah) 20-hour rate1.2
- Nominal Capacity (Ah) 10-hour rate1.14
- Nominal Capacity (Ah) 5-hour rate1.02
- Weight (kg)0.59
- Weight (lb)1.3
- Standard Terminal TypeT1
- Standard Terminal Position4
- Optional Terminal Type-
- Optional Terminal Position-
- Dimensions Length (mm)97
- Dimensions Length (in)3.82
- Dimensions Width (mm)45
- Dimensions Width (in)1.77
- Dimensions Height (mm)50
- Dimensions Height (in)1.97
- Dimensions Total Height (mm)56
- Dimensions Total Height (in)2.21
