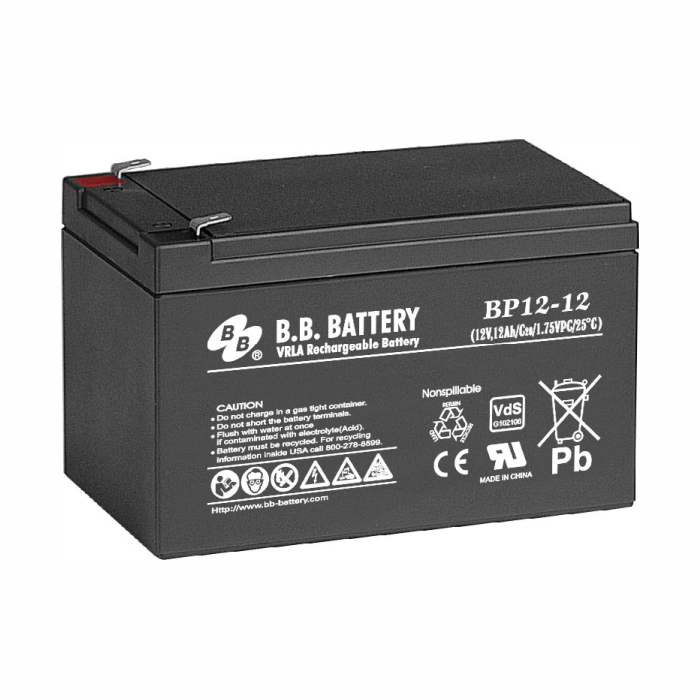

BP12-12
The B.B.Battery BP12-12 series VRLA sealed lead-acid battery features impact-resistant ABS casing and an explosion-proof valve design, delivering 12V voltage and 12Ah capacity (20-hour rate). It is suitable for critical applications such as UPS uninterruptible power supplies, security alarm systems, and medical equipment. This maintenance-free battery supports dual horizontal/vertical installation modes, with a monthly self-discharge rate below 3%. Paired with flame-retardant materials, it ensures an ultra-long service life of 8-10 years, making it particularly ideal for server rooms, oilfield mining sites, and commercial spaces requiring over 30 minutes of backup power. Eurobat-certified quality guarantees safer and more reliable equipment operation.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
As an industrial-grade backup power solution, the B.B.Battery BP12-12 VRLA battery demonstrates exceptional performance in emergency lighting and access control systems, thanks to its 12V voltage platform and compact 3.94kg design (dimensions 151x98x94mm). The positive and negative plates utilize a special paste coating process, combined with T2 standard terminals to ensure stable output. Its 5-hour rate capacity of 10.2Ah enables rapid response during sudden power outages.The medical-grade sealed structure eliminates electrolyte leakage risks, while its wide temperature tolerance (-15°C to 40°C) ensures device operation. The explosion-proof valve design with fire safety certification is particularly suited for special environments like oil/gas fields and rural villas. Users can opt for T1 terminals as needed, and the lightweight 8.69lb body facilitates integration into drone power packs or lab instruments. With a 98mm total height compatible with standard rack mounting, it delivers long-term power support for communication base stations and intelligent security systems.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP12-12
- Voltage12 V
- Nominal Capacity (Ah) 20-hour rate12
- Nominal Capacity (Ah) 10-hour rate11.4
- Nominal Capacity (Ah) 5-hour rate10.2
- Weight (kg)3.94
- Weight (lb)8.69
- Standard Terminal TypeT2
- Standard Terminal Position5
- Optional Terminal TypeT1
- Optional Terminal Position-
- Dimensions Length (mm)151
- Dimensions Length (in)5.94
- Dimensions Width (mm)98
- Dimensions Width (in)3.86
- Dimensions Height (mm)94
- Dimensions Height (in)3.7
- Dimensions Total Height (mm)98
- Dimensions Total Height (in)3.86
